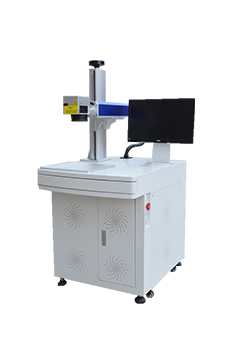

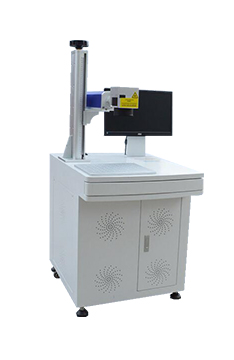

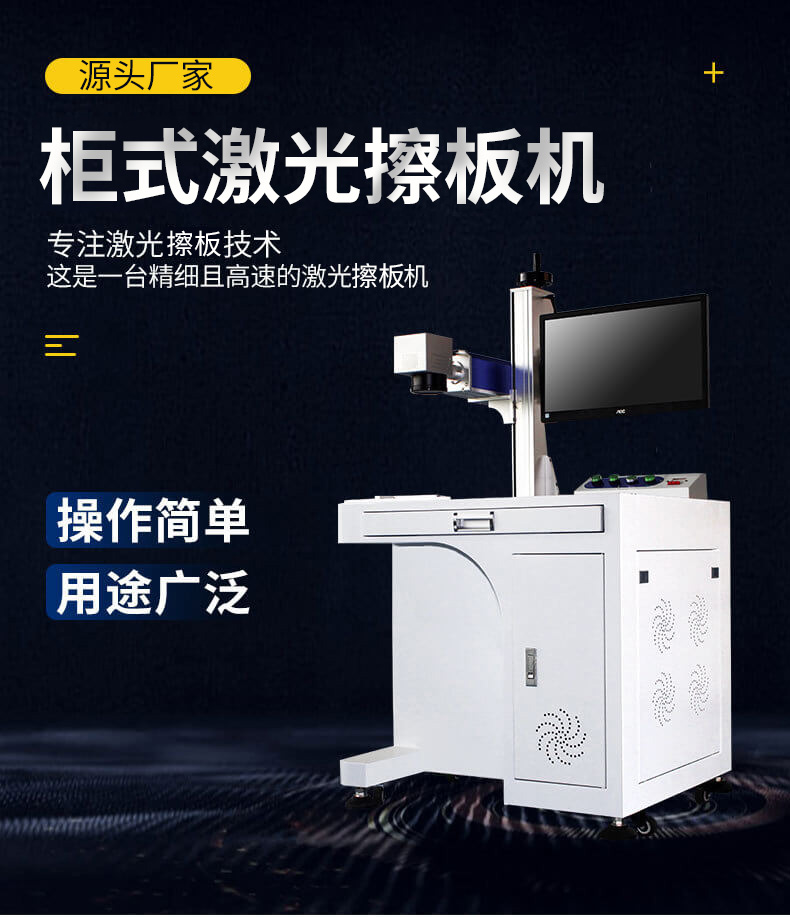

LS-PCB系列PCB激光擦板機
產品分類 :
型 號 : LS-PCB-20W/30W
激光器類型 : PCB激光擦板機
激光波長 : 1064nm
激光功率 : 20w/30w
脈寬范圍 : 200ns
打標速度 : ≤7000mm/s
咨詢電話 : 0769-81221176
在線留言產品詳情
PCB激光擦板機技術參數：
型號
LS-PCB-20W/30W
激光器類型
PCB激光擦板機
激光波長
1064nm
激光功率
20w/30w
頻率范圍
10-400KHz
脈寬范圍
200ns
打標速度
≤7000mm/s
最小線寬
0.02mm
最小字符
0.05mm
重復精度
±0.1μm
標記范圍
110mm×110mm(可選配）
冷卻方式
空氣冷卻
工作電源
AC220V/50Hz
PCB laser cleaning machine with perfect characteristics and good pulse shape control. Laser design life of up to 50,000 hours. Meanwhile, PCB laser cleaning machine pulse frequency and pulse width are controlled independently, change in frequency does not affect the pulse width, in addition, Using different pulse width to material processing characteristic difference, wide, narrow pulse mutually auxiliary work, Can improve the success rate of PCB welding bit. Because the laser working speed is 3-5 times faster than that of the common plate cleaning machine, the labor cost is reduced, the labor cost is reduced, the efficiency is improved, and the demanding requirements of the customers are satisfied.
Model
LS-PCB-20W/30W
Laser Type
PCB laser cleaning machine
Laser wavelength
1064nm
Laser Power
20w/30w
Frequency Range
10-400KHz
Pulse Width Range
200ns
Marking speed
≤7000mm/s
The minimum line width
0.02mm
Minimum character
0.05mm
Repeat accuracy
±0.1μm
Label range
110mm×110mm(optional)
Cooling
Air cooling
Power supply
AC220V/50Hz
Application advantages:
1.PCB Aluminum coating, anode layer stripping
2.PCB Surface peeling paint, ceramic scribing
3. All kinds of metal, plastic marking
4. Deep carving various materials
Technical parameters:
